ProSecure Unified Threat Management (UTM) Appliance Reference Manual
1-10 Introduction
v1.0, January 2010
Hardware Features
The front panel ports and LEDs, rear panel ports, and bottom label of the UTM are described
below.
Front Panel
Viewed from left to right, the UTM front panel contains the following ports (see Figure 1-2 on
page 1-10, which shows a dual-WAN port model, the UTM25):
• One non-functioning USB port: this port is included for future management enhancements.
The port is currently not operable on the UTM.
• LAN Ethernet ports: four switched N-way automatic speed negotiating, Auto MDI/MDIX,
Gigabit Ethernet ports with RJ-45 connectors.
• WAN Ethernet ports: one (single WAN-port models) or two (dual WAN port models)
independent N-way automatic speed negotiating, Auto MDI/MDIX, Gigabit Ethernet ports
with RJ-45 connectors.
The front panel also contains three groups of status indicator light-emitting diodes (LEDs),
including Power and Test LEDs, LAN LEDs, and WAN LEDs, all of which are explained in
Table 1-2.

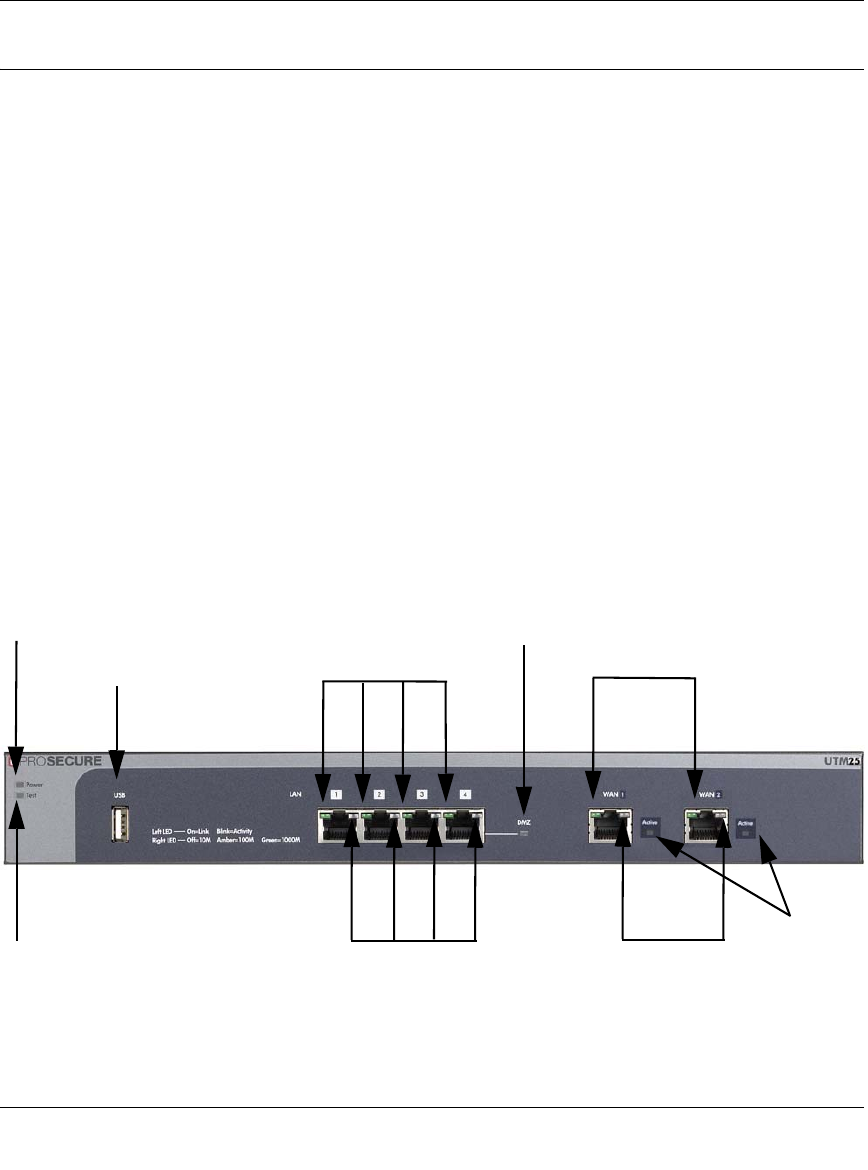

Figure 1-2
Power LED
Test LED
Left LAN LEDs
Right LAN LEDs
DMZ LED
Left WAN LEDs
Right WAN LEDs
Active
WAN
LEDs
USB port
