ProSecure Unified Threat Management (UTM) Appliance Reference Manual
Monitoring System Access and Performance 11-17
v1.0, January 2010
Threats (Counts)
This is a graphic that shows the relative number of threats and access violations over the last week, using
different colors for the various applications.
Note: IMBlock stands for instant messaging applications blocked; P2PBlock stands for peer-to-peer
applications blocked; IPSSisMatch stands for IPS signatures matched.
Total Traffic (Bytes)
This is a graphic that shows the relative number of traffic in bytes over the last week.

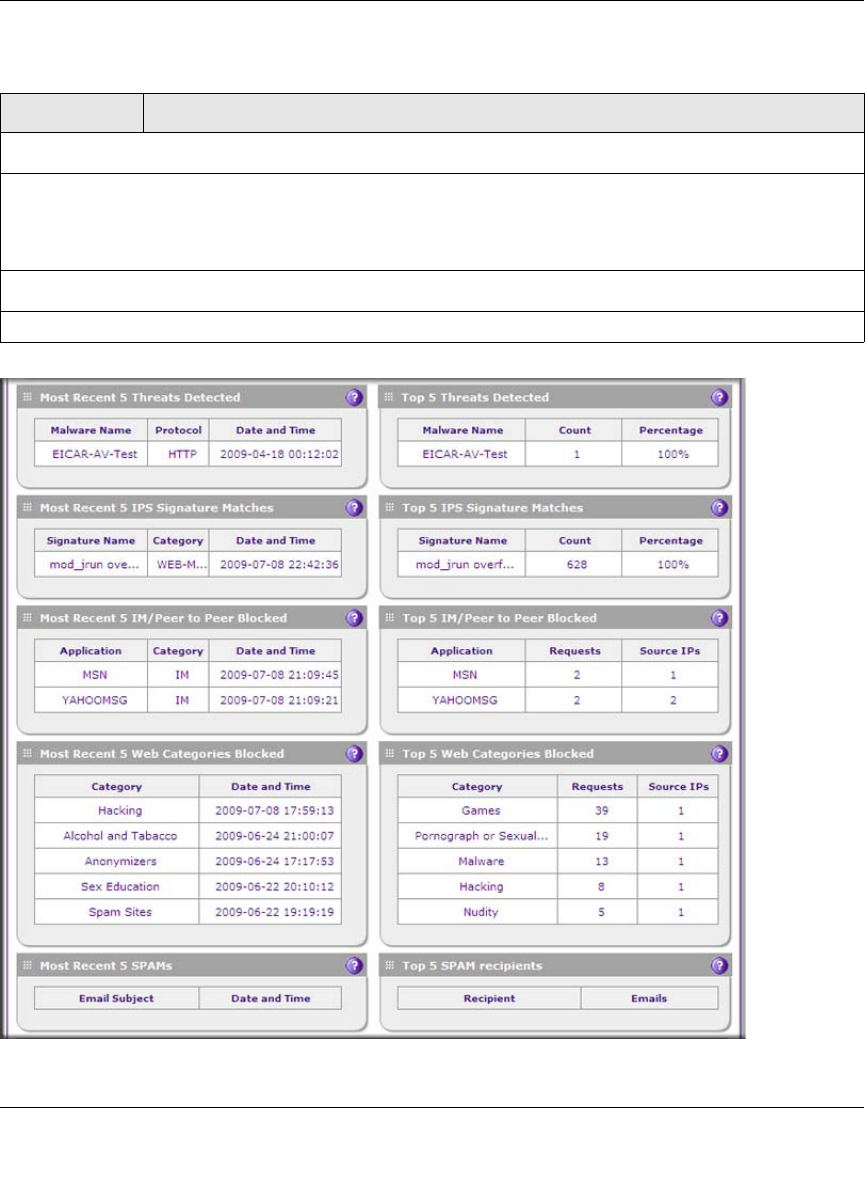

Figure 11-8 [Dashboard, screen 2 of 3]
Table 11-6. Dashboard: Total Threats, Threats (Counts), and Total Traffic (Bytes) Information
