ProSecure Unified Threat Management (UTM) Appliance Reference Manual
Manually Configuring Internet and WAN Settings 3-3
v1.0, January 2010
2. Click the Auto Detect action button at the bottom of the menu. The auto-detect process probes
the WAN port for a range of connection methods and suggests one that your ISP is most likely
to support. (Figure 3-2 shows a dual-WAN port model’s screen. A single-WAN port model’s
screen shows only a single WAN ISP Settings submenu tab.)

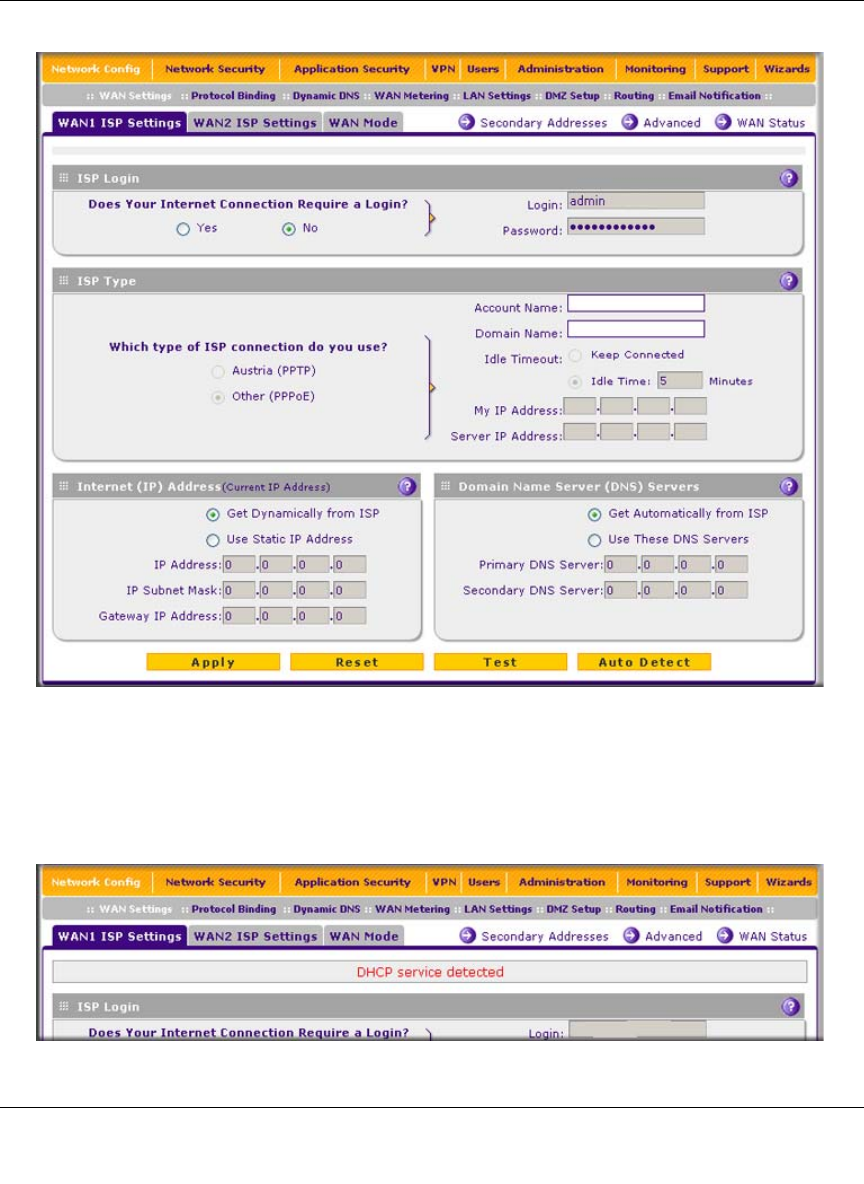

Figure 3-1
Figure 3-2
