ProSecure Unified Threat Management (UTM) Appliance Reference Manual
8-26 Virtual Private Networking Using SSL Connections
v1.0, January 2010
• If you enable split tunnel support and you assign an entirely different subnet to the VPN tunnel
clients than the subnet that is used by the local network, you must add a client route to ensure
that a VPN tunnel client connects to the local network over the VPN tunnel.
Configuring the Client IP Address Range
First determine the address range to be assigned to VPN tunnel clients, then define the address
range.
To define the client IP address range:
1. Select VPN > SSL VPN from the menu. The SSL VPN s submenu tabs appear, with the
Policies screen in view.
2. Click the SSL VPN Client submenu tab. The SSL VPN Client screen displays.

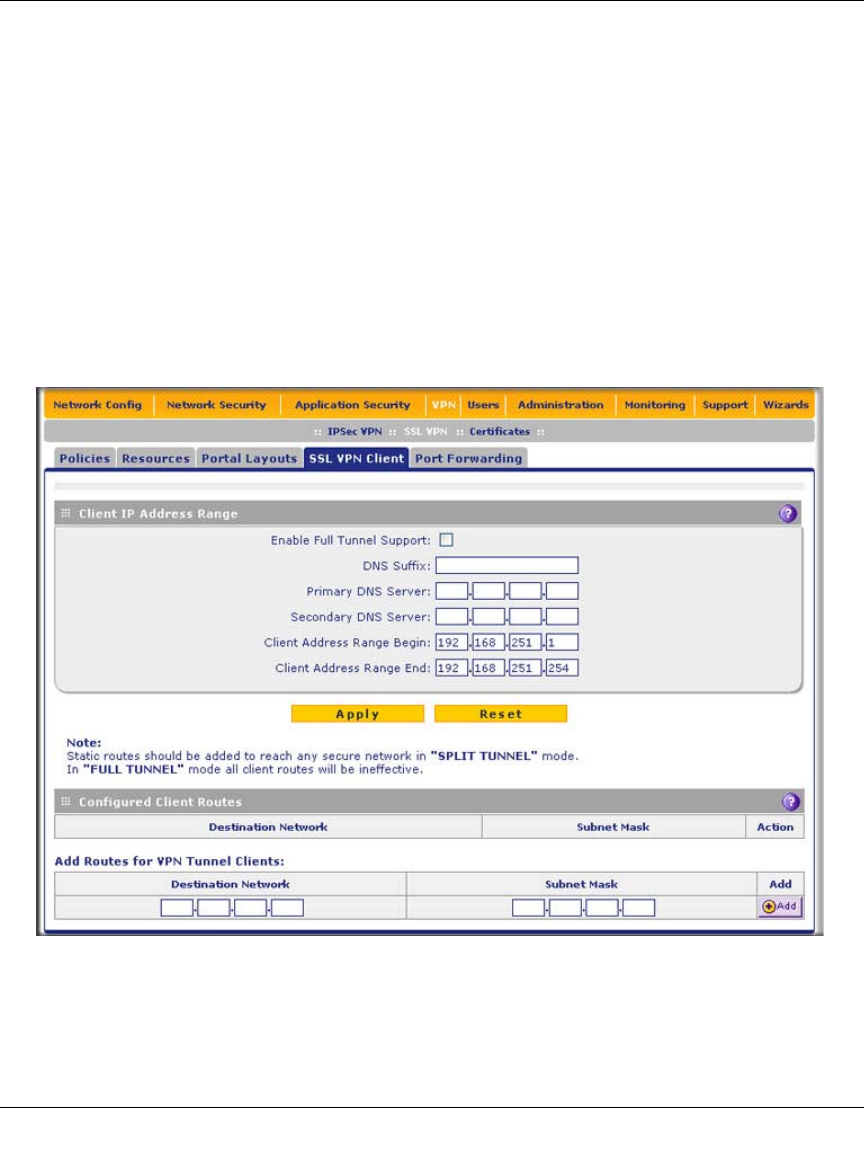

Figure 8-15
