ProSecure Unified Threat Management (UTM) Appliance Reference Manual
LAN Configuration 4-7
v1.0, January 2010
2. Either select an entry from the VLAN Profiles table by clicking the corresponding Edit table
button or add a new VLAN profile by clicking the Add table button under the VLAN Profiles

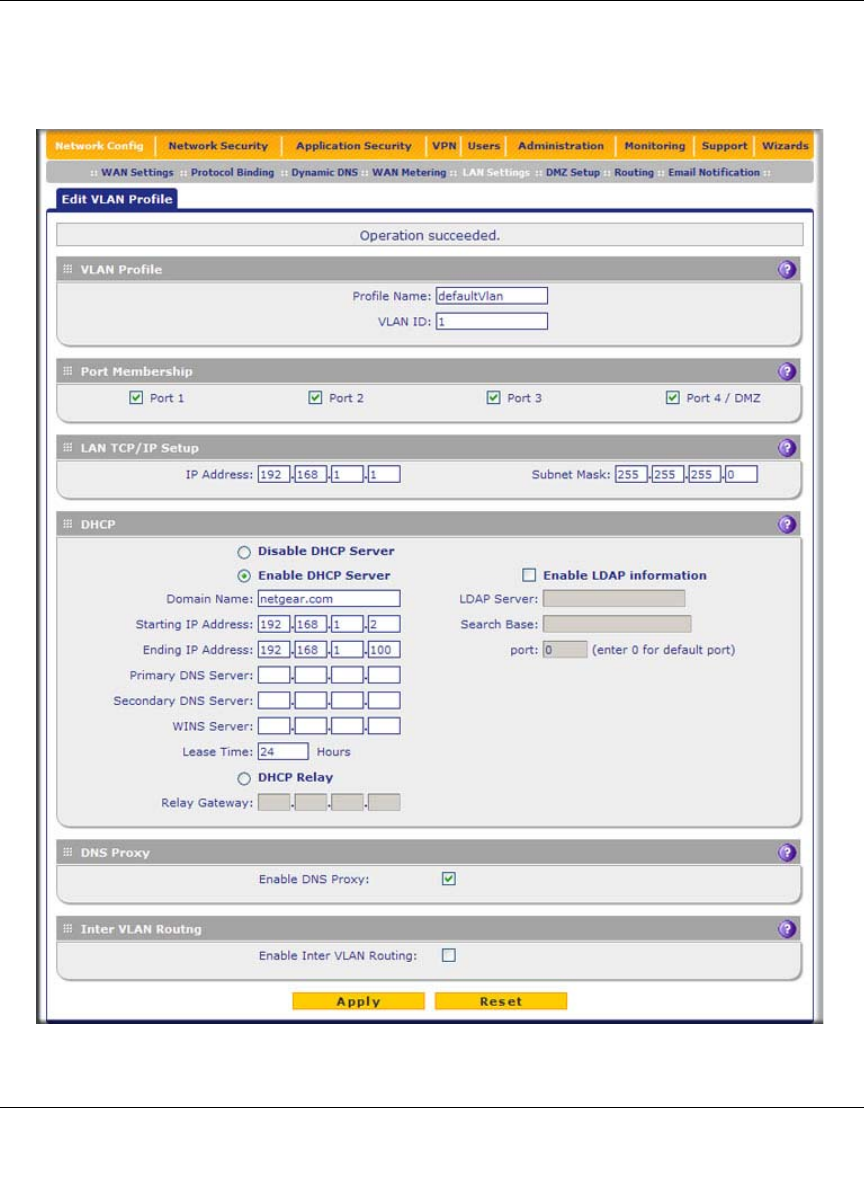

table. The Edit VLAN Profile screen displays (see Figure 4-3).
Figure 4-3
